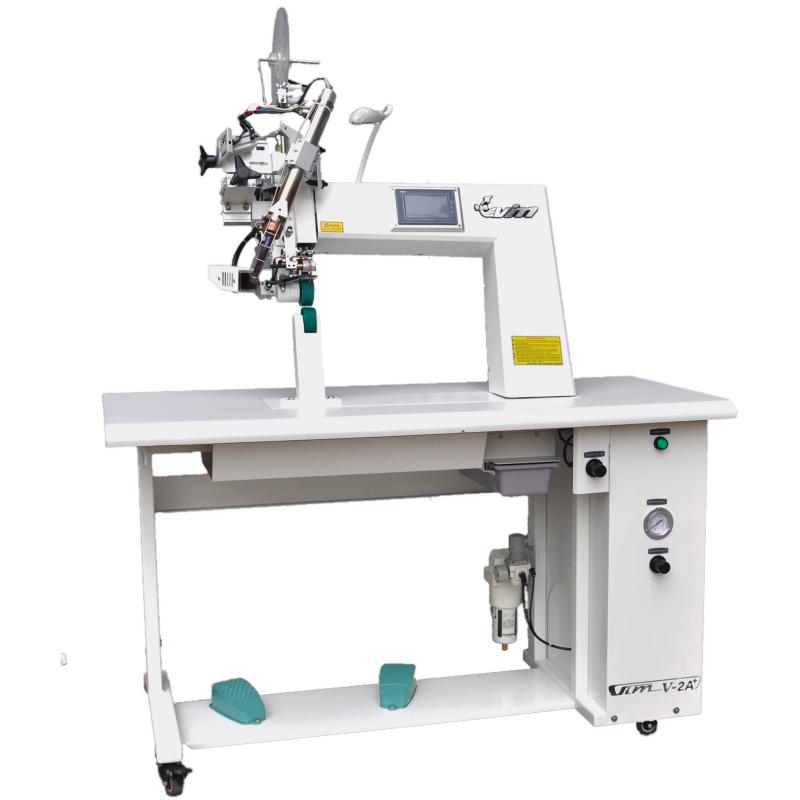

Hot air seam sealing machine V-2A+
2020-12-04 552
產品參數/Product parameters
型號 | Model | V-2A+(差速）(Speed Differential) |
電壓 | Voltage | AC220V50/60Hz |
額定功率 | Rating Efficiency | 2.8KW |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
熱合速度 | Heat Sealing Speed | 1-25m/min |
風嘴最高溫度 | Maximum Temperature of Nozzle | 700℃ |
上下壓輪寬度 | Pinch roller Width | ?65×25mm |
外型尺寸 | Exterior size | 1300mm×600mm×1530mm |
凈重 | Net weight | 130kg |
可選滾輪 | Optional Size of Roller | 8-25mm |
V-2A+性能參數
1. 額定功率2.8KW，根據發熱溫度而定。
2. 額定電壓：AC～220V 額定頻率50/60Hz。
3. 發熱管最高溫度≤700℃。
4. 本機總氣壓：0.35～0.5MPa。
5. 上柱壓輪壓力為0.01～0.5MPa可調。
6. 速度：1～25m/min。
7. 外形尺寸：（1300 ×600 × 1530）mm。
8. 壓輪寬度：25mm（1英寸）。
9. 壓輪直徑：65 mm。
10. 熱風槍嘴寬度：22 mm。
11. 噪音：小于80 dbA。
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
